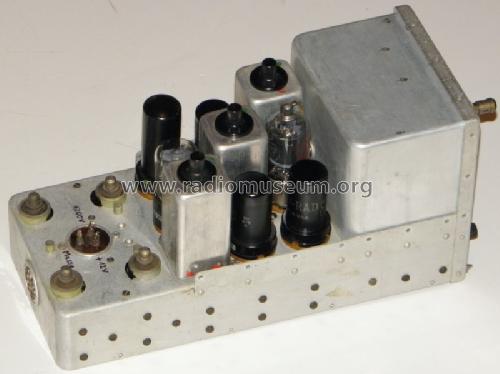

BC-455 /SCR-274N
MILITARY U.S. (different makers for same model)
- Pays
- Etats-Unis
- Fabricant / Marque
- MILITARY U.S. (different makers for same model)
- Année
- 1939–1945
- Catégorie
- Récepteur militaire
- Radiomuseum.org ID
- 101802
Cliquez sur la vignette du schéma pour le demander en tant que document gratuit.
- No. de tubes
- 6
- Principe général
- Super hétérodyne avec étage HF; FI/IF 2830 kHz; 1 Etage(s) BF
- Circuits accordés
- 8 Circuits MA (AM)
- Gammes d'ondes
- OC uniquement
- Tension / type courant
- Piles (rechargeables ou/et sèches) / 24 - 28 Volt
- Haut-parleur
- - Pour casque ou amplificateur BF
- Matière
- Boitier métallique
- De Radiomuseum.org
- Modèle: BC-455 /SCR-274N - MILITARY U.S. different makers
- Forme
- Rack
- Dimensions (LHP)
- 125 x 140 x 300 mm / 4.9 x 5.5 x 11.8 inch
- Remarques
-
Moore shows the BC-455-A which appears to be similar. Frequency range 6 to 9.1 Mc. Dynamotor power supply.
Der Empfänger gehört zur SCR-274-N Serie. Eingesetzt wurde er im B24 WWII Bomber. Die Stromversorgung erfolgt über einen Dynamotor. Frequenzbereich: 6-9.1 MHz
- Poids net
- 3.9 kg / 8 lb 9.4 oz (8.59 lb)
- Source
- - - Data from my own collection
- Littérature
- Communications Receivers
- Auteur
- Modèle crée par Alexander Küffer. Voir les propositions de modification pour les contributeurs supplémentaires.
- D'autres Modèles
-
Vous pourrez trouver sous ce lien 401 modèles d'appareils, 353 avec des images et 210 avec des schémas.
Tous les appareils de MILITARY U.S. (different makers for same model)
Collections
Le modèle BC-455 /SCR-274N fait partie des collections des membres suivants.
Contributions du forum pour ce modèle: MILITARY U.S.: BC-455 /SCR-274N
Discussions: 1 | Publications: 1
Radio Set SCR-274-N is a multi-channel aircraft radio receiving and transmitting equipment.
Used for aircraft to aircraft communication, aircraft to ground, but not for aircraft to base or liasion.
Receiving components are Radio Receivers BC-453-(x) 190-550 kHz, BC-946-(x) 520-1500 kHz, BC-454-(x) 3,0-6,0 mHz, BC-455-(x) 6,0-9,1 mHz; Dynamotor DM-32-(x) and several radio control boxes; racks, mountings and cordage. Frequency tuning is local or remote by use of suitable adaptors and tuning controls. ( e.g. to handle 3 channels one could switch between 3 receivers)
Transmitting components are Radio Transmitter BC-696-(x) 3,0-4,0 mHz, BC 457-(x) 4,0-5,3 mHz, BC-458-(x) 5,3-7,0 mHz, BC-459-(x) 7,0-9,1 mHz; Dynamotor DM-33-(x); Modulator unit BC-456-(x); Control box BC-451(x); Antenna relay unit BC-442-(x).
A newer and enhanced version of this equipment is AN/ARC-5.
Jan Terranea, 10.May.10
