• Country
• France

• Manufacturer / Brand
• Pathé Radio, Pathé Frères (Pathéphone); Paris

• Year
• 1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 68621

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6E8 6H8 6M7 6V6 5Y3 6AF7

• Main principle
• Superheterodyne (common); ZF/IF 472 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

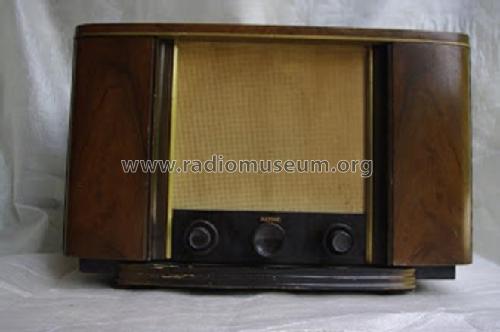

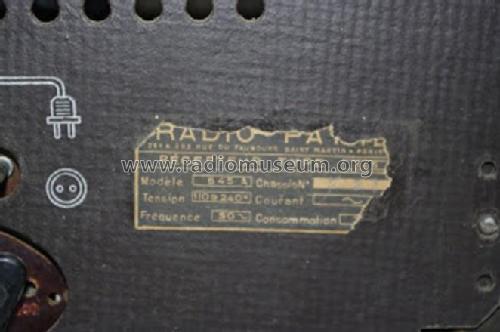

• Model: 345 Ch= 645A - Pathé Radio, Pathé Frères Path

• Shape
• Tablemodel, low profile (big size).

• Notes

• 3 gammes d'ondes : OC de 15 à 50 m, PO de 190 à 570 m, et GO de 1000 à 2000 m.

  Équivalent au Marconi 85.

• External source of data
• Serge Laffont/Martin Renoth

• Mentioned in
• Schémathèque Toute la Radio (STR) (No. 630)

• Other Models

• Here you find 157 models, 139 with images and 34 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Pathé Radio, Pathé Frères (Pathéphone); Paris
