• Country
• France

• Manufacturer / Brand
• Pathé Radio, Pathé Frères (Pathéphone); Paris

• Year
• 1950/1951

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 99611

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECH42 EAF42 EL41 AZ41

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s); Reflex

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch

• Power out
• 2 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: 450 Ch= 450A - Pathé Radio, Pathé Frères Path

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 325 x 242 x 190 mm / 12.8 x 9.5 x 7.5 inch

• Notes

• 4 gammes d'ondes dont 1 band étalée (BE) sur OC 50 m.

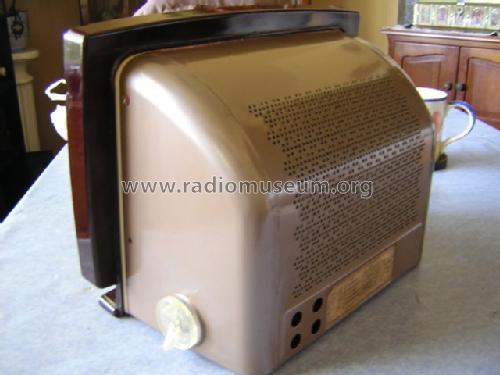

  Coffret forme radiateur en métal, face en bakélite. Grille or mat avec cadre blanc lamé ou grille or gris avec cadre aubergine.

  Équivalent au Marconi 54.

• Net weight (2.2 lb = 1 kg)
• 5 kg / 11 lb 0.2 oz (11.013 lb)

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Rudy Vande Loo. See "Data change" for further contributors.
