• Country
• France

• Manufacturer / Brand
• Pathé Radio, Pathé Frères (Pathéphone); Paris

• Year
• 1936/1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 33874

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• EK2 EF5 EBC3 EL2 EZ3

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 220; 250 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 5 Ch= 537 [1re série] - Pathé Radio, Pathé Frères Path

• Shape

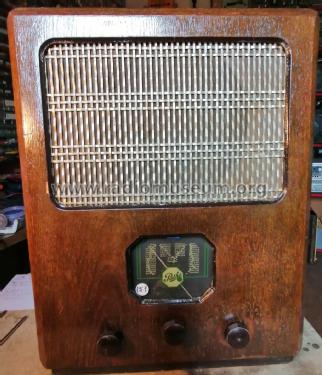

• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Notes

• Ébénisterie chêne cérusé.

  Équivalent au Marconi 22.

  Voir aussi modèle 5 en présentation différent.

• Price in first year of sale
• 1,295.00 FRF

• External source of data
• Serge Laffont/Martin Renoth

• Mentioned in
• -- Original prospect or advert (Paris-Soir, 11.11.1936)

• Literature/Schematics (1)
• -- Original prospect or advert (Sept, 20.11.1936)

• Literature/Schematics (2)
• Schémathèque Toute la Radio (STR) (No. 46)
