144X (144, 144E) Early
Philco, Philadelphia Stg. Batt. Co.; USA
- País
- Estados Unidos
- Fabricante / Marca
- Philco, Philadelphia Stg. Batt. Co.; USA
- Año
- 1934
- Categoría
- Radio - o Sintonizador pasado WW2
- Radiomuseum.org ID
- 140609
Haga clic en la miniatura esquemática para solicitarlo como documento gratuito.
- Numero de valvulas
- 6
- Principio principal
- Superheterodino en general; ZF/IF 260 kHz
- Gama de ondas
- OM y más de dos OC
- Tensión de funcionamiento
- Red: Corriente alterna (CA, Inglés = AC) / 115 Volt
- Altavoz
- Altavoz electrodinámico (bobina de campo)
- Potencia de salida
- 5 W (unknown quality)
- Material
- Madera
- de Radiomuseum.org
- Modelo: 144X [Early] - Philco, Philadelphia Stg. Batt
- Forma
- Consola en general
- Anotaciones
- The Philco 144 series was a follow-on to the model 44 series of all-wave radios. The model 144 chassis has six tubes and covers BC to 23 MHz in four bands. It has a shadow meter (tuning aid) and a four position tone control. The standard 144 chassis was designed for 115 VAC 50-60 Hz, and the 144E export version (code 125) of the chassis was designed for 230 VAC 50-60 Hz.
There are six individual models in the series with different cabinet styles. The early version (1934) of the 144B table radio is a cathedral with scalloped top. The late version (1935) of 144B is a shouldered tombstone having a lyre-shaped speaker opening with three vertical bars through the center of the opening.
Model 144H (1934-35) is a highboy with six legs and a Y-shaped speaker opening with vertical bars. Model 144D (1934) is a similar highboy design with doors.
The early version (1934) of the 144X floor-type console has a classical design, with three round pillars in front of the inclined sounding board. The late version (1934-35) of 144X has a somewhat more modern design with three square fluted pillars in front of the speaker and an emblem at the top center of the cabinet.
- Procedencia de los datos
- Philco Radio 1928-1942
- Referencia esquema

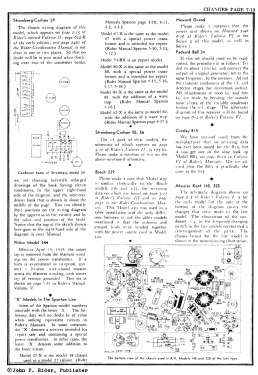

- Rider's Perpetual, Volume 5 = ca. 1934 and before
- Mencionado en
- Pre-War Consoles

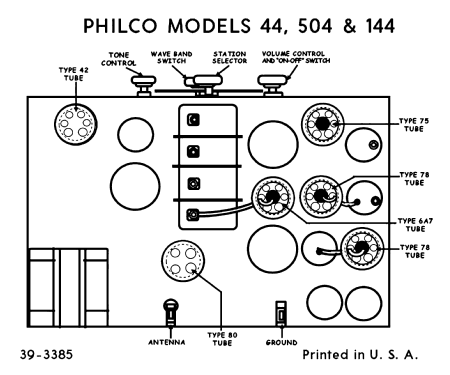

- Documentación / Esquemas (1)

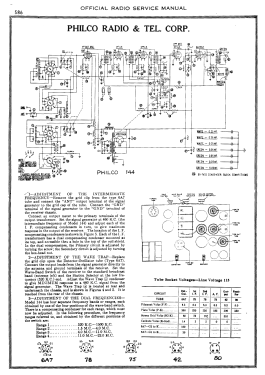

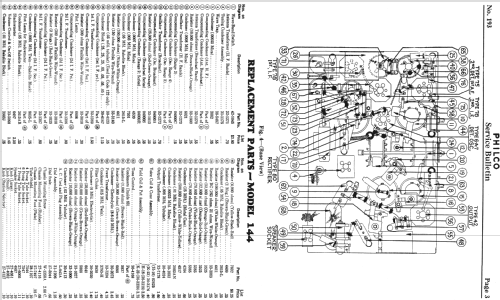

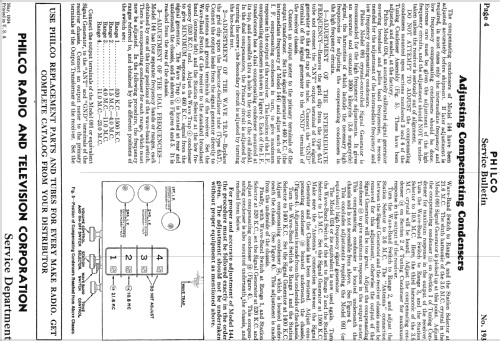

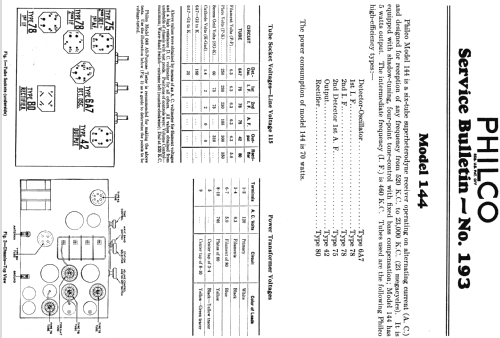

- Philco Service Bulletin # 193; Philco Wiring Diagrams, Parts Lists, and Essential Serv. Data 1928-36
