90AL290 /00 /01 /40 /45
Philips - Österreich
- Country
- Austria
- Manufacturer / Brand
- Philips - Österreich
- Year
- 1977 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 82259

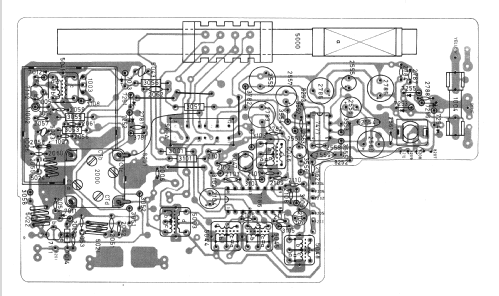

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 2
- Main principle
- Superheterodyne (common); ZF/IF 455 or 468/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Line / Batteries (any type) / 110; 220 / 4 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
- Power out
- 0.4 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

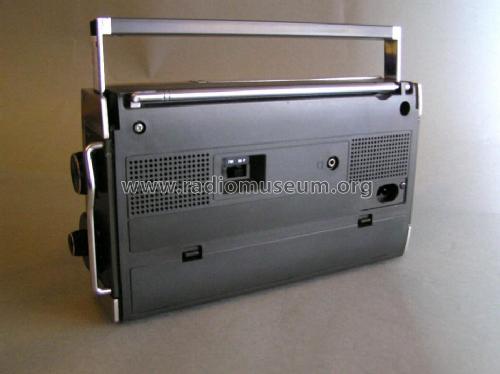

- Model: 90AL290 /00 /01 /40 /45 - Philips - Österreich
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 255 x 180 x 60 mm / 10 x 7.1 x 2.4 inch
- Notes
- Net weight (2.2 lb = 1 kg)
- 0.975 kg / 2 lb 2.4 oz (2.148 lb)
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Literature/Schematics (1)
- -- Original-techn. papers.
Philips AL290/400 - User's manual | 792 KB |
- Documents regarding this model
- Author
- Model page created by Wolfgang Bauer. See "Data change" for further contributors.
- Other Models
-
Here you find 1073 models, 1007 with images and 853 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Philips - Österreich
Collections
The model is part of the collections of the following members.
Forum contributions about this model: Philips - Österreich: 90AL290 /00 /01 /40 /45
Threads: 1 | Posts: 1
This model with 10 diodos and 2 TR (BF324 and BF451) - 2 IC (TDA1220 and TBA820)
AC- 110V and 220 Volts, and 50/60 Hz and 3,5 watts
Band FM 98-108 and 100-240
Band OM 550-1600
Altofalante-8 ohm/1 watt rms, max with distortion, not distortion max RMS is 0,700 Watts.
My model is Type 90AL290/01
Manuel Henrique Oliveira-Jesus, 09.Aug.13
