N4502
Philips - Österreich
- Country
- Austria
- Manufacturer / Brand
- Philips - Österreich
- Year
- 1972 ??
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 98412
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Tape Recorder
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: N4502 - Philips - Österreich
- Dimensions (WHD)
- 480 x 330 x 130 mm / 18.9 x 13 x 5.1 inch
- Notes
- 4 Spuren, Spulen-Ø 18 cm, Bandgeschwindigkeiten: 9,5/19 cm/s; 2 Köpfe, 3 Motoren; Frequenzgang 40-18000 Hz bei 19 cm/s.
- Net weight (2.2 lb = 1 kg)
- 9 kg / 19 lb 13.2 oz (19.824 lb)
- Mentioned in

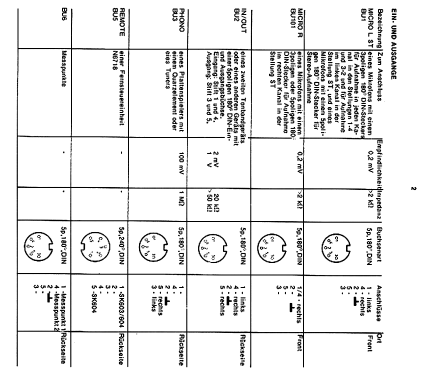

- -- Original-techn. papers.
- Author
- Model page created by Wolfgang Winkler. See "Data change" for further contributors.
