• Country
• Austria

• Manufacturer / Brand
• Philips - Österreich

• Year
• 1955/1956

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 73372

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• ECC85 ECH81 EF89 EF89 EM80 EABC80 EL84 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 150; 220; 240 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

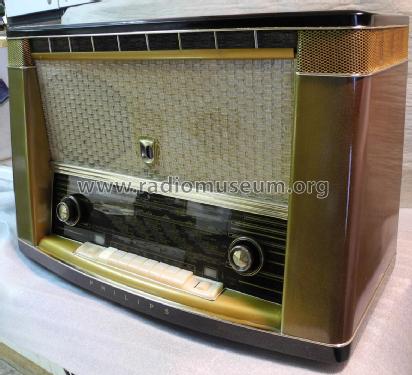

• Model: Pastorale BA753A - Philips - Österreich

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 660 x 440 x 300 mm / 26 x 17.3 x 11.8 inch

• Notes

• 2 ZF-Stufen für FM, 3-D; 8 Tasten
  Das Gerät hat 4 Skalenzeiger: Lokal (MW), Stellung Ferritantenne, UKW-Bereich, AM-Bereiche (LW MW KW).
  Mit den entsprechenden Tasten können 3 vorgewählte Stationen abgerufen werden.
  Parallelgerät zum Hornyphon Traviata 56 W775A.

• Price in first year of sale
• 3,460.00 ATS

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
