Radiolo RA127U

• Country
• France

• Manufacturer / Brand
• Radiola (marque)

• Year
• 1957–1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 192084

• • Brand: SFER

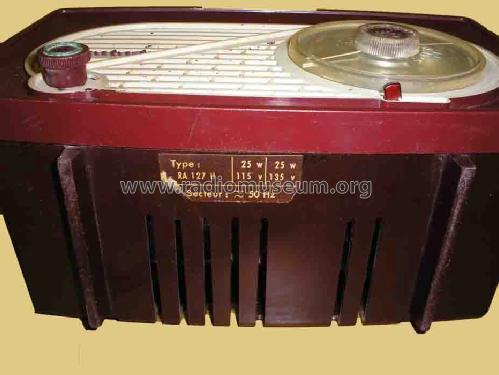

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• UCH81 UBF80 UCL82 UY85 or UY42

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• AC/DC-set / 124 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Radiolo RA127U - Radiola marque

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 238 x 150 x 115 mm / 9.4 x 5.9 x 4.5 inch

• Notes

• Coffret matière plastique, 3 couleurs au choix.

  Prix en 1959: 14180 Fr.

  Équivalent au Philips B1F03U.

• Net weight (2.2 lb = 1 kg)
• 1.9 kg / 4 lb 3 oz (4.185 lb)

• Price in first year of sale
• 12,600.00 FRF

• Literature/Schematics (1)
• Le grand livre de la TSF (Ref 2781)

• Author
• Model page created by Getulio Jimenez-Gomez. See "Data change" for further contributors.
