• Country
• Austria

• Manufacturer / Brand
• Siemens-Austria (WSW); Wien

• Year
• 1955/1956

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 10652

• • alternative name: Ges. für Technische Glaswaren
  • Brand: Wiener Schwachstrom Werke (WSW)

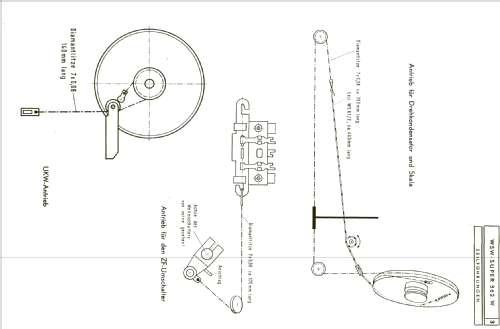

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM80 EL84

• Number of Transistors

• Semiconductors
• B250C90

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150: 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch

• Material
• Wooden case

• from Radiomuseum.org

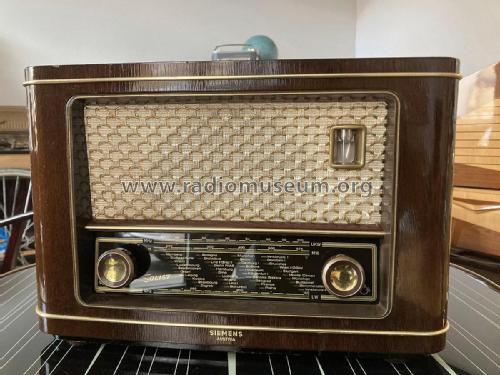

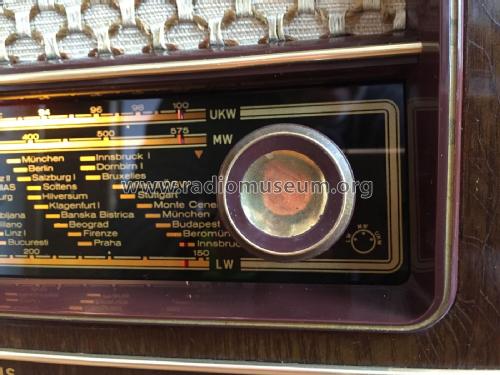

• Model: Solist UKW-Super 562W - Siemens-Austria WSW; Wien

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 368 x 244 x 168 mm / 14.5 x 9.6 x 6.6 inch

• Notes
• • Frequenzbereiche:
    • UKW 86,7 - 100,5 MHz
    • MW 184 - 582m; 515 - 1630kHz
    • LW 1070 - 2000m; 150 - 280 kHz
  • Anschluß für Tonabnehmer und Aussenlautsprecher.
  • Schalt- und regelbare Tonblende.
  • Leistungsbedarf ca. 48 Watt.
  • Skalenlämpchen 7V; 0,3A
  • 2 Sicherungen 0,8A

• Net weight (2.2 lb = 1 kg)
• 6.2 kg / 13 lb 10.5 oz (13.656 lb)

• Price in first year of sale
• 1,295.00 öS

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Mentioned in
• Radiotechnik, Die, Wien (RT 42) (5509B)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Other Models

• Here you find 202 models, 177 with images and 132 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Siemens-Austria (WSW); Wien
