Ukawette UKW-Super 555U

• Country
• Austria

• Manufacturer / Brand
• Siemens-Austria (WSW); Wien

• Year
• 1954/1955

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 10649

• • alternative name: Ges. für Technische Glaswaren
  • Brand: Wiener Schwachstrom Werke (WSW)

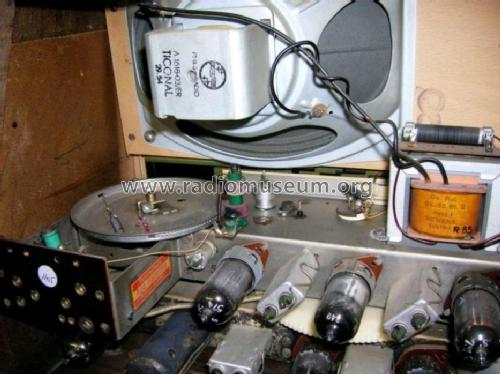

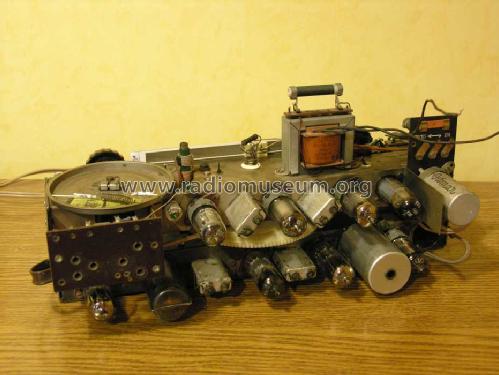

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• UF80 UC92 UF80 UF80 DM70 UB41 UCH42 UF41 UBC41 UL41

• Number of Transistors

• Semiconductors
• E220C85

• Main principle
• Superheterodyne (common); ZF/IF 560/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• AC/DC-set / 110; 125; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: Ukawette UKW-Super 555U - Siemens-Austria WSW; Wien

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 385 x 277 x 182 mm / 15.2 x 10.9 x 7.2 inch

• Notes

• Siemens-Austria UKW-Super 555U = Ukawette

  • AM-Teil:
    • siehe Rondo II Super 555U
    • verwendete Röhren UCH42 UAF42 UBC41 UL41 DM70.
  • FM-Teil:
    • siehe UKW-Untersatz Super 547 U
    • verwendete Röhren UF80 UC92 UF80 UF80 UB41.
  • Skalenlämpchen 12V 0,1A
  • Sicherung 1A

• Net weight (2.2 lb = 1 kg)
• 4.7 kg / 10 lb 5.6 oz (10.352 lb)

• Price in first year of sale
• 1,285.00 ATS

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb

• Mentioned in
• Radiotechnik, Die, Wien (RT 42) (5409B)

• Literature/Schematics (1)
• -- Original-techn. papers.
