FM radio altimeter STR30

• Pays
• Royaume Uni

• Fabricant / Marque
• Standard Telephones and Cables Ltd. (STC); London, Foots Cray

• Année
• 1951

• Catégorie
• Équipement radar

• Radiomuseum.org ID
• 304053

• • Brand: Micromesh tubes

• Images
• Schémas

Previous Next

Previous Next

Cliquez sur la vignette du schéma pour le demander en tant que document gratuit.

• No. de tubes
• 31

• Lampes / Tubes
• 8D3 6AL5 7D9 12AT7 9D6 EAC91 STV70/20 V1135C VX7069 VLS631

• No. de transistors

• Semi-conducteurs
• CV291 CG4C

• Gammes d'ondes
• Bandes en notes

• Tension / type courant
• Alimentation externe ou alimentation principale

• Matière
• Boitier métallique

• De Radiomuseum.org
• Modèle: FM radio altimeter STR30 - Standard Telephones and Cables

• Remarques

• The Type STR30 is an S band (7 cm) FM radio altimeter that was developed by the Radio Division of Standard Telephones and Cables Ltd at New Southgate, London. It was used as part of the Royal Aircraft Establishment's BLEU (Blind Landing Experimental Unit) programme to provide the precise height-above-ground information required for the automatic landing of an aircraft in zero visibility. The information was used to control the aircraft approach speed and flare-out.

  Minimum height: 0 ft.
  Maximum height: 5000 ft.
  Accuracy: Error does not exceed +-2 ft or +-3%, whichever is the greater.
  Transmitter frequency: In band 4200 - 4400 MHz.
  Sweep on low range: 100 MHz.
  Sweep on high range: 10 MHz.
  Transmitter power: 0.5 W to antenna.
  Modulation: 300 Hz by 4 W 3-phase synchronous hysteresis motor.
  Receiver mixer: Balanced silicon diode mixer.
  Overall amplification: >100 dB.
  Counter output: 4 mA.

  Antennas: Flush-mounting horns with fibreglass covers.
  Maximum angle of bank +-20 deg.
  Maximum angle of pitch +-17 deg.
  There are very small sidelobes at 90 deg.
  Isolation between transmit and receive antennas: 50 dB.
  VSWR <1.12 over the 200 MHz band.

  Indicators: 0-500 ft with log scale for approach and landing, 0-5000 ft with linear scale for normal flight use.
  Remote control unit for pilot.

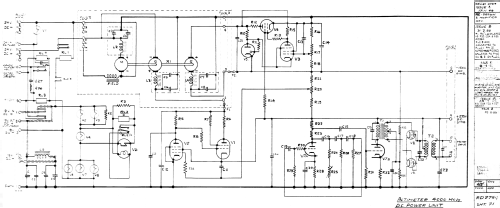

  A power unit delivers stabilised HT and bias supplies, together with 300 Hz for the modulation motor.
  The inputs to the power supply are 23.5 - 29v DC at 9A and 19v stabilised at 3A.

  The transmitter is housed in a 7" SBAC rack with a special backplate carrying a receiver coupling waveguide, an adjustable transmitter coupling probe, and two permanently mounted 30" (76 cm) UR21 RF cables for the antennas. There is an attenuation of about 0.8 dB in each cable. The delay in these cables and the waveguide results in a signal of about 1 kHz on the 500 ft range,which is the minimum possible signal frequency.
  The receiver and power supply units are housed in a standard SBAC rack.

  Valve complement:

  Transmitter
  VX7069
  12AT7
  2 CV291

  Receiver - amplifier unit
  4 8D3
  9D6
  EAC91

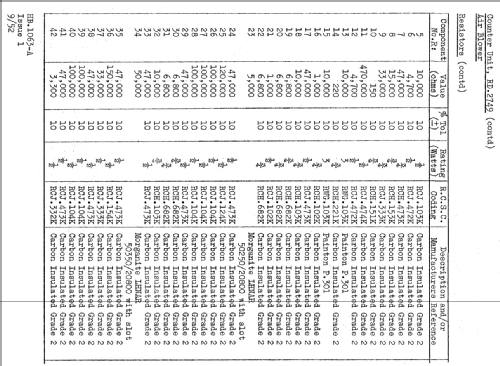

  Receiver - counter unit
  7 8D3
  3 6AL5
  2 CG4C

  Power unit
  3 7D9
  2 8D3
  12AT7
  V1135
  STV70/20
  VLS631

• Poids net
• 20.4 kg / 44 lb 14.9 oz (44.934 lb)

• Auteur
• Modèle crée par Bruce Taylor. Voir les propositions de modification pour les contributeurs supplémentaires.
