• Country
• Germany

• Manufacturer / Brand
• Studer GmbH, Willi (ReVox); Löffingen

• Year
• 1964–1967

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 27247

• • Brand: ReVox (brand)

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 12

• Valves / Tubes
• ECC81 ECC81 ECC81 ECC81 ECC82 ECC83 ECC83 ECC83 ECC83 ECC83 ECL86 ECL86

• Number of Transistors
• 2

• Semiconductors
• AC124 RT9448

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch

• from Radiomuseum.org

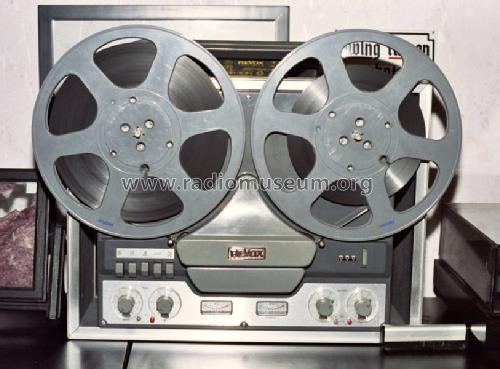

• Model: Revox G36 19/38 [Koffer] - Studer GmbH, Willi ReVox;

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 480 x 297 x 340 mm / 18.9 x 11.7 x 13.4 inch

• Notes
• Stereo-Tonbandkoffergerät, 3 Motore, 3 Köpfe, 19 und 38 cm/s, 2-Spur-Ausführung, max. 26,5 cm-Spulen, 5 Dioden

• Net weight (2.2 lb = 1 kg)
• 23 kg / 50 lb 10.6 oz (50.661 lb)

• Price in first year of sale
• 2,000.00 DM

• External source of data
• erb

• Source of data
• Handbuch VDRG 1967/1968 / Radiokatalog Band 2, Ernst Erb
