1641

AGA and Aga-Baltic Radio AB; Sweden

Data
Forum
Pictures
Collections

  • Year
  • 1945
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 18086
    • alternative name: AGA-Baltic Radio AB; Stockholm

Click on the schematic thumbnail to request the schematic as a free document.

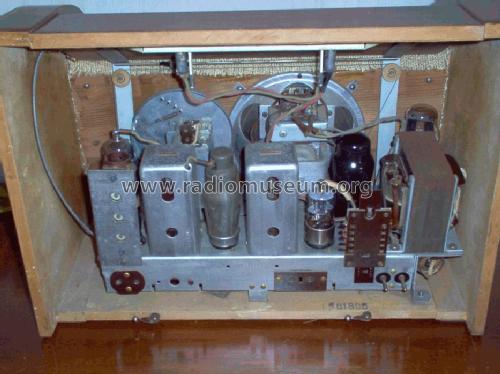

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 463 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110-240 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 16 cm = 6.3 inch
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 1641 - AGA and Aga-Baltic Radio AB;
  • Dimensions (WHD)
  • 460 x 321 x 235 mm / 18.1 x 12.6 x 9.3 inch
  • Notes

  • Im Schaltplan ist anstatt einer 6SJ8G fälschlicherweise eine 6S8G als Mischrohr eingetragen Das wäre aber eine Triode/Dreifachdiode, als Mischrohr denkbar ungeeignet und auch nicht zum Schaltplan passend.

    The model 1641P has a 6 inch permanent magnet dynamic (PDyn) loudspeaker.

  • Price in first year of sale
  • 490.00 SFR
  • External source of data
  • E. Erb 3-907007-36-0
  • Circuit diagram reference
  • Die «Thali Schemasammlung» führt das Modell.
  • Mentioned in
  • - - Manufacturers Literature (AGA-Baltic service documentation 1945-46)

 Collections | Museums | Literature

Collections

The model is part of the collections of the following members.

 Forum

Forum contributions about this model: AGA and Aga-Baltic: 1641

Threads: 2 | Posts: 9

Hello Radiofriends According to the AGA 1641 schematics, the mixer tube is a 65J8G, not a 6SJ8G. Would this be to some help? regards Lars-G.

Lars-G. Lundelin, 24.Nov.07

Weitere Posts (6) zu diesem Thema.

Hello!
I have an AGA 1641. And this a very embarassing thing to ask for..
Since this was the first radio I was thinking of cleaning, I made the beginner's MAJOR mistake!
I tried to wipe the dial clean with a moist cloth...
And as YOU all know, and I didn't know, all of the print disappeared.. I shed a few tears, and decided that I wouldn't do any restoration for a while.. ;o)

Well, My question is, with the above mentioned as background: Is there anyone out there, that has the possibility to scan a dial and sell the scanned image to me, so I can make a new one?

I am having thought that I can use a water-decal, you know, they are used on e.g. airplane models, and similar.. You put it in water, and slide in onto the surface, and when dry, it is finished!
I have heard that there are such decal foils available to use with ink-jet printers, and if I could get a scanned image of the dial, I might make a new scale in glass or acrylic plastic..
I think it is best to scan it mirrored, I mean, putting the dial with the text side (inside)  downwards, because otherwise there would be a couple of millimetres between the text and the scanner..

Is there anyone that could help me with this?

Thanks for reading this!
Kind regards
/Jörgen Svensson, Sweden
