Concertino 6 Wechselstrom

Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Data
Forum
Pictures
Collections

  • Year
  • 1955/1956
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 20474

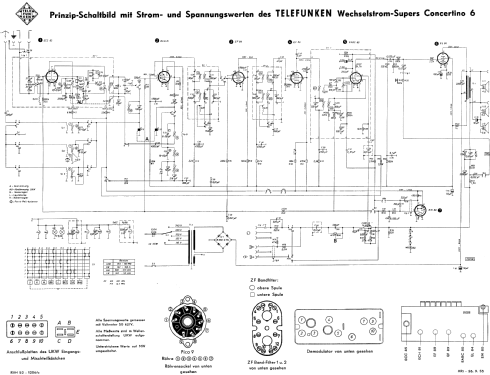

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Number of Transistors
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 8 AM circuit(s)     11 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110, 125, 150, 220, 240 Volt
  • Loudspeaker
  • 3 Loudspeakers
  • Power out
  • 5 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Concertino 6 [Wechselstrom] - Telefunken Deutschland TFK,
  • Shape

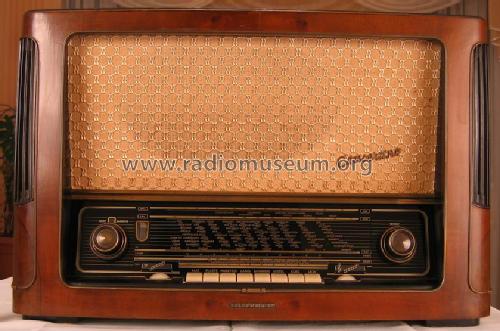

  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 640 x 405 x 275 mm / 25.2 x 15.9 x 10.8 inch
  • Notes

  • UKW-Skala mit Ätzstreifen zur Markierung der Sender; KW-Lupe. Chassis baugleich mit AEG 4075WD.

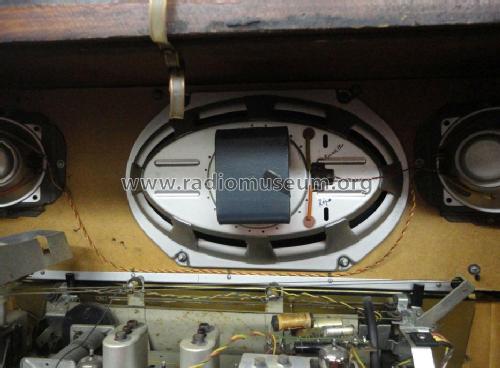

    Internal ferrite antenna rotating by control that is coaxial to the volume pin.

    Separate controls for bass and treble with position indicator.

    Woofer impedance: 4 Ω, Tweeter impedance (two in parallel): 5 Ω.

  • Net weight (2.2 lb = 1 kg)
  • 14.5 kg / 31 lb 15 oz (31.938 lb)
  • Price in first year of sale
  • 419.00 DM
  • External source of data
  • Erb

 Collections | Museums | Literature

Collections

The model Concertino is part of the collections of the following members.

 Forum

Forum contributions about this model: Telefunken: Concertino 6

Threads: 1 | Posts: 13

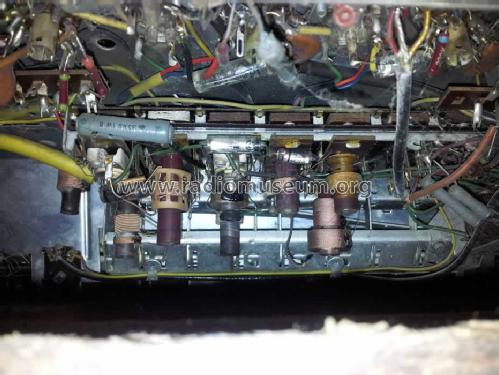

hello to all members , thanks again for the help to determinate the correct model , on the first look detect changes on the power supply (cams from same old technician) , this guy cut the AC selector ( 240v ,220v ,150v ,125v ,110v ) of the radio and the original AEG B 300 C 75 diode... .

As replacement diode use the B280C 800Si ( old technician replacement not my choice. )

Before plug the radio again to my country power source ( 230v ), remove all tubs of the radio and measure the high voltage on the pins 7 and 9 of EL84 tube, pin 9 give me 350v dc pin 7 give me 340v dc .The original schematic have on pin 7 250v dc and on pin 9 230v dc . Hear i need help, how to tune the voltage of the power supply with the correct voltage , please give me advice ,is very important to me on my country is very hard to find a specialist to repair the radio .

Photos of transformer and the diode :

Thanks very mach

Pantelis Vasileiou, 28.May.12
